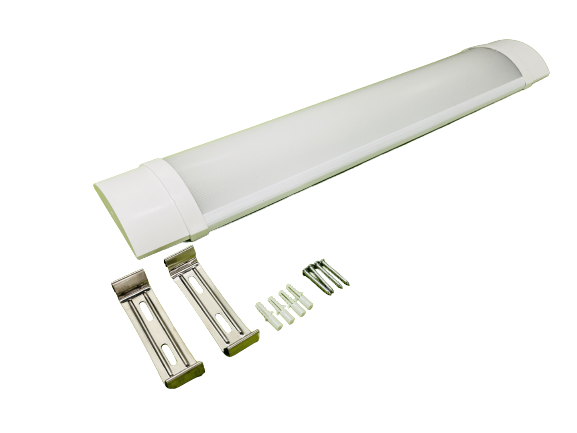

868S Series
- Whole extrusion molding plastic lamps, different from the traditional led tri-proof lights.
- The Structure of this lamp can protect them from the water, dust and oxidation.
- IP65-high water-proof coefficient.
- Complete certificates-IP65, CE, ERP, RoHS, BIS, SAA, IK08 and CB.
- Easy installation-directly connect to the power, replace the traditional led tube perfectly.
| 868S Series | MDT-8681S-SMD18 | MDT-8682S-SMD36 | MDT-8683S-SMD45 |
|---|---|---|---|
| Wattage | 18W | 36W | 45W |
| CCT | 2700-7000k | 2700-7000k | 2700-7000k |
| Lumen | 1440LM | 2880LM | 3600LM |
| Voltage | AC85-265V | AC85-265V | AC85-265V |
| CRI | RA>80 | RA>80 | RA>80 |
| PF | PF>0.9 | PF>0.9 | PF>0.9 |
| Dimension | 602X70X25MM | 1202.5X70X25MM | 1492.5X70X25MM |

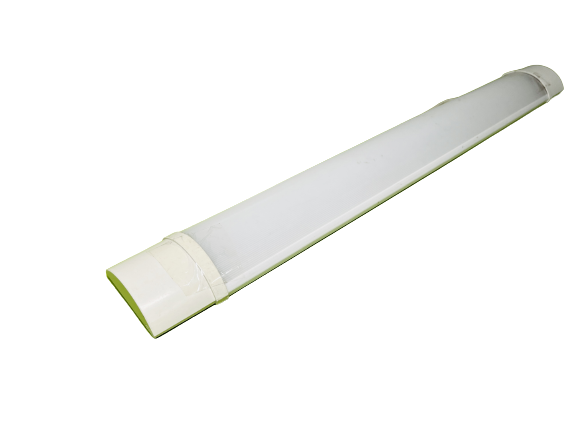

8100S Series
- Whole extrusion molding plastic lamps, different from the traditional led tri-proof lights.
- The Structure of this lamp can protect them from the water, dust and oxidation.
- IP65-high water-proof coefficient.
- Complete certificates-IP65 CE, ERP, RoHS, BIS, SAA, IK08 and CB.
- Easy installation-directly connect to the power, replace the traditional led tube perfectly.
| 8100S Series | MDT-8101S-SMD18 | MDT-8102S-SMD36 | MDT-8103S-SMD45 |
|---|---|---|---|
| Wattage | 18W | 36W | 45W |
| CCT | 2700-7000k | 2700-7000k | 2700-7000k |
| Lumen | 1440LM | 2880LM | 3600LM |
| Voltage | AC85-265V | AC85-265V | AC85-265V |
| CRI | RA>80 | RA>80 | RA>80 |
| PF | PF>0.9 | PF>0.9 | PF>0.9 |
| Dimension | 613X108X32MM | 1173X108X32MM | 1473X108X32MM |
